IXFH10N80P

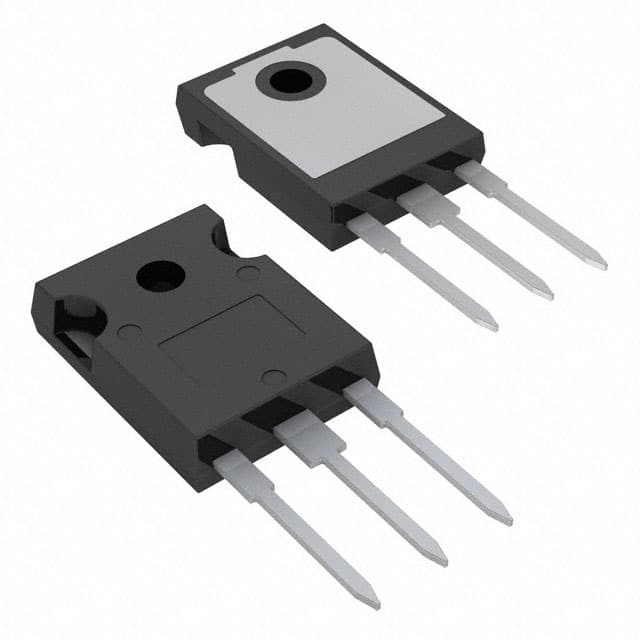

N-Channel 800V 10A (Tc) 300W (Tc) Through Hole TO-247
Price:
$3.432
each
| for 30 pcs
Part Number:
IXFH10N80P
Make: IXYS Corporation
Make: IXYS Corporation
207 In Stock.
7-10 Days to Ship
Specifications : IXFH10N80P
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drain to Source Voltage (Vdss) | 800V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2050 pF @ 25 V |
| Mounting Type | Through Hole |
| Number of Pins | 3 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Package / Case | TO-247 |
| Power Dissipation (Max) | 300W (Tc) |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 5A, 10V |
| RoHS Status | ROHS3 Compliant |
| Series | HiPerFET™, Polar |
| Standard Package | 30 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±30V |
| Vgs(th) (Max) @ Id | 5.5V @ 2.5mA |
|
100% Purchase Protection
Original Products | Secure Payments
|
Buy IXFH10N80P
Pricing
| 30 : | $3.432 |
